ALPEN OPTICS · Optics · Prism Scope

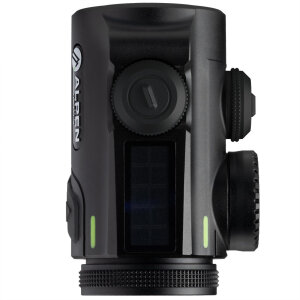

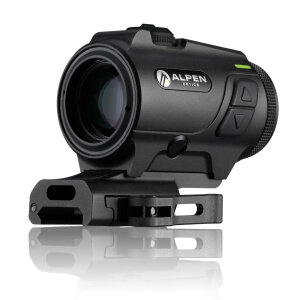

ALPEN OPTICS Nevada LT Prism 3×24 – Ballistic Reticle | DynamicDot™ | IPX7 | 288 g
3×24 fixed magnification · ballistic reticle for .223 Rem & .308 Win · DynamicDot™ motion sensor · 14 brightness levels (10 daylight + 4 NV) · 128 m field of view at 1’000 m · MRAD 0.1 click adjustment · aluminium 6061 T6 housing · IPX7 waterproof · nitrogen purged · 288 g · magnumproof up to 1’000 g.
Fast target acquisition meets ballistic precision – the Nevada LT Prism 3×24
The ALPEN OPTICS Nevada LT Prism 3×24 with ballistic reticle bridges the gap between reflex sights and traditional riflescopes. Its fixed 3× magnification and dedicated ballistic holdover marks for .223 Remington and .308 Winchester allow rapid target engagement at close to medium range – precisely where driven hunts, stalking situations and tactical scenarios demand split-second decisions. Weighing just 288 g and measuring only 92 mm in length, the Nevada LT mounts on virtually any rail without adding bulk. Multi-coated optics with 80–85 % light transmission and a generous 128 m field of view at 1’000 m deliver a bright, clear sight picture from dawn to dusk.
Ballistic reticle · DynamicDot™ · IPX7
Purpose-built ballistic reticle for .223 Rem & .308 Win – holdover marks where they matter
The second-focal-plane ballistic reticle provides calibrated holdover points specifically engineered for .223 Remington and .308 Winchester trajectories. Instead of guessing elevation at extended distances, you simply place the appropriate mark on target and fire. The illuminated centre dot with 14 brightness settings (including four night-vision-compatible levels) ensures the aiming point remains visible against any background. Combined with MRAD 0.1 click turrets offering 176 clicks of horizontal and vertical travel, the Nevada LT delivers repeatable, precise adjustments in the field.
DynamicDot™ technology – always ready, never wasted
An integrated motion sensor monitors the Nevada LT continuously. After two minutes of inactivity the illumination enters standby mode, preserving battery life. The instant you shoulder the rifle or shift position, DynamicDot reactivates the reticle at your last selected brightness – no fumbling for controls in the decisive moment. A single CR2032 coin cell powers the system for thousands of hours, and the battery compartment is accessible without removing the optic from the rifle.
Aluminium 6061 T6 construction – magnum-rated durability
The one-piece housing is machined from aerospace-grade aluminium 6061 T6, then finished with a matte-black hard anodising for scratch and corrosion resistance. Rated to withstand recoil forces up to 1’000 g, the Nevada LT handles everything from rimfire plinking to full-power magnum loads. IPX7 waterproofing (1 m / 30 min) combined with internal nitrogen purging eliminates fogging across an operating temperature range of −20 °C to +70 °C – conditions that push most compact optics past their limits.
Key features – ALPEN OPTICS Nevada LT Prism 3×24
- 🎯 3×24 fixed-magnification prism scope – compact 92 mm body at only 288 g
- 🔫 Ballistic reticle with holdover marks for .223 Rem & .308 Win (2nd focal plane)
- 💡 DynamicDot™ motion sensor – auto standby after 2 min, instant reactivation
- 🔆 14 brightness levels – 10 daylight + 4 night-vision-compatible
- 🔧 MRAD 0.1 click adjustment (1 cm @ 100 m) – 176 clicks horizontal & vertical
- 🌍 128 m field of view at 1’000 m – fast target acquisition
- 💧 IPX7 waterproof + nitrogen purged – fog-free from −20 °C to +70 °C
- 🛡️ Shockproof up to 1’000 g – magnum-rated aluminium 6061 T6 housing
- 🔋 CR2032 battery included – thousands of hours with DynamicDot
- 🏆 ALPEN OPTICS Deluxe warranty
Who is the ALPEN OPTICS Nevada LT Prism 3×24 for?
The Nevada LT Prism 3×24 with ballistic reticle is designed for hunters and sport shooters who need rapid, precise target engagement at close to medium range. Its compact dimensions and featherweight construction make it equally at home on a driven-hunt rifle, a tactical carbine or a compact pistol-calibre platform.
Technical Specifications – ALPEN OPTICS Nevada LT Prism 3×24
| Model | ALPEN OPTICS Nevada LT Prism 3×24 Ballistic (ALP71324LT) |
|---|---|
| Product type | Prism scope / prismatic sight |
| EAN | 4007922090993 |
| Manufacturer | Bresser GmbH, Rhede, Germany |
| Optical system | |
| Magnification | 3× (fixed) |
| Objective diameter | 24 mm |
| Luminous intensity | 64 |
| Twilight factor | 8.49 |
| Lens coating | Multi-coated (green) |
| Light transmission | 80–85 % |
| Performance | |
| Field of view | 128 m at 1’000 m |
| Close focus | 2.5 m |
| Eye relief | 69–76 mm |
| Illumination | |
| Brightness levels | 14 (10 daylight + 4 night vision) |
| Illumination technology | DynamicDot™ – motion-sensor auto standby after 2 min |
| Battery | CR2032 (included) |
| Reticle & adjustment | |
| Reticle type | Ballistic reticle (.223 Rem & .308 Win) |
| Focal plane | 2nd focal plane |
| Click value | MRAD 0.1 (1 cm @ 100 m) |
| Adjustment range | 176 clicks horizontal & vertical |
| Protection & durability | |
| Waterproof rating | IPX7 (1 m / 30 min) |
| Fog proof | Yes – nitrogen purged |
| Shockproof | Up to 1’000 g (Magnum-rated) |
| Operating temperature | −20 °C to +70 °C |
| Construction | |
| Housing | Aluminium 6061 T6 |
| Dimensions & weight | |
| Dimensions | 92 × 49 × 70 mm (L × W × H) |
| Weight | 288 g |
| Warranty & origin | |
| Warranty | ALPEN OPTICS Deluxe |
Box contents – ALPEN OPTICS Nevada LT Prism 3×24
- 🎯 ALPEN OPTICS Nevada LT Prism 3×24 prism scope with ballistic reticle for .223 Rem & .308 Win, DynamicDot™ illumination, aluminium 6061 T6 housing
- 🔋 CR2032 battery for reticle illumination (pre-installed or packaged)
- 🧹 Front dust cap objective lens protection
- 👓 Rear dust cap eyepiece lens protection
- 📄 User manual
- 📋 Warranty card
Frequently Asked Questions – ALPEN OPTICS Nevada LT Prism 3×24
What calibres is the ballistic reticle designed for?
The ballistic reticle provides holdover marks specifically calibrated for .223 Remington and .308 Winchester trajectories. These two calibres cover the vast majority of sporting and tactical rifle applications at close to medium range.
How does DynamicDot™ technology work?
DynamicDot uses a built-in motion sensor that detects movement. After two minutes of inactivity the reticle illumination enters standby mode automatically. As soon as the optic is moved – for example when shouldering the rifle – it reactivates at your last selected brightness level, saving battery while ensuring instant readiness.
How many brightness levels does the reticle offer?
The Nevada LT offers 14 brightness levels: 10 daylight settings and 4 night-vision-compatible settings, allowing you to match the dot intensity to any ambient light condition.
Is the Nevada LT Prism 3×24 waterproof?
Yes. The Nevada LT is rated IPX7, meaning it survives immersion in up to 1 m of water for 30 minutes. Internal nitrogen purging prevents fogging across a temperature range of −20 °C to +70 °C.
What type of adjustment does the Nevada LT use?
The turrets use MRAD 0.1 click values, equalling 1 cm adjustment per click at 100 m. Both horizontal and vertical turrets provide 176 clicks of travel for ample zeroing range.
Can the Nevada LT handle magnum recoil?
Yes. The aluminium 6061 T6 housing is shockproof up to 1’000 g, making it fully compatible with magnum-class calibres and heavy-recoiling firearms.
What battery does the Nevada LT use?
The Nevada LT uses a standard CR2032 coin-cell battery, which is included in the box. Thanks to DynamicDot standby mode, battery life extends to thousands of operational hours.
What warranty does the Nevada LT Prism 3×24 have?
The Nevada LT comes with the ALPEN OPTICS Deluxe warranty, providing comprehensive coverage for material and manufacturing defects.
