Pixfra Draco D635N-4K
Multispectral Binocular 640×512 & 4K UHD
Four observation systems in one binocular: 640×512 thermal, 4K day camera, 1’000 m laser rangefinder and 940 nm IR illuminator.

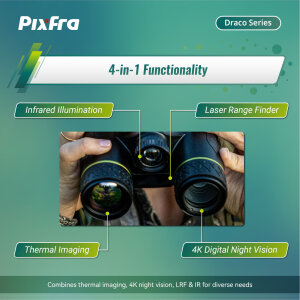

4-in-1 multispectral system – four sensors, one device
The Pixfra Draco D635N-4K combines four professional observation systems in a single binocular: a high-resolution 640×512 thermal sensor (15 mK NETD, 1’800 m detection range), a 4K UHD day camera (3’840×2’160) with 5.5× magnification and electronic image stabilisation, a Class 1 laser rangefinder (up to 1’000 m, ±1 m accuracy) and a replaceable 940 nm IR illuminator with 350 m range. PIPS 3.0 AI imaging, GPS, compass, dual-band Wi-Fi and 64 GB internal storage complete this premium multispectral binocular.
Pixfra · Multispectral · 4-in-1
640×512 Thermal with PIPS 3.0
The vanadium oxide 640×512 sensor with 12 μm pixel pitch and F/1.0 optics (35 mm) achieves a thermal sensitivity of 15 mK – among the best values available for uncooled detectors. The proprietary PIPS 3.0 system with AI-assisted image calibration guarantees consistent, artefact-free image quality.
4K UHD day camera with EIS – for day, dusk and night
The integrated 4K UHD camera (3’840×2’160, 55 mm, F/2.0) provides 5.5× magnification during the day (up to 44× with digital zoom), with a field of view of 8.0°×4.5°. Electronic image stabilisation (EIS) compensates for shake and movement for steady observation. The built-in anti-fog function improves the image in haze and fog. Five image modes (Colour, Black & White, Green, Yellow, Auto) combined with the 940 nm IR illuminator (up to 350 m) enable effective night observation without visible light emission.
IP67, GPS, Wi-Fi & swappable battery – for any deployment
Rated IP67, the Draco D635N-4K is fully dust-tight and withstands temporary submersion to 1 m depth. The operating temperature range from −30 °C to +55 °C covers any climate zone. GPS and compass provide position data directly in the device. Dual-band Wi-Fi (2.4 GHz + 5 GHz) enables stable video streaming and remote control via the Pixfra Outdoor app. The swappable 18650 battery delivers at least 8 hours of runtime (Wi-Fi off, 25 °C) and can be exchanged in the field. With 64 GB of internal storage, sufficient capacity is available for hours of 4K video recording.
Key features – Pixfra Draco D635N-4K
- 🔬 Thermal sensor 640×512 VOx, 12 μm, F/1.0 (35 mm), 15 mK NETD
- 🎥 4K UHD day camera 3’840×2’160, 5.5× (up to 44× digital zoom), EIS
- 📡 Thermal detection range 1’800 m
- 📏 Class 1 laser rangefinder: up to 1’000 m, ±1 m accuracy
- 💡 940 nm IR illuminator (replaceable), 350 m range
- 🤖 PIPS 3.0 with AI calibration, 6 colour palettes, hotspot tracking
- 🗺️ GPS, compass, dual-band Wi-Fi (2.4 GHz + 5 GHz)
- 💾 64 GB internal storage for 4K video recording
- 💧 IP67 – waterproof to 1 m, operating range −30 °C to +55 °C

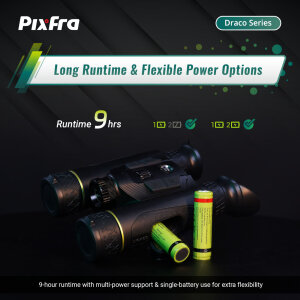

- 🔋 Swappable 18650 battery, ≥8 h runtime, USB-C charging
For professionals, hunters and demanding observers
Whether professional surveillance, hunting, wildlife observation or search and rescue operations – the Draco D635N-4K delivers reliable performance under all conditions, day and night. The 4-in-1 system eliminates the need for multiple devices and significantly reduces carry weight in the field.
| Thermal camera | |
|---|---|
| Sensor type | Vanadium oxide (VOx), uncooled focal plane array |
| Resolution | 640 × 512 pixels |
| Pixel pitch | 12 μm |
| Spectral range | 8 – 14 μm |
| Thermal sensitivity (NETD) | 15 mK |
| Aperture | F/1.0 |
| Focal length | 35 mm |
| Magnification (thermal) | 4.3× base, 1×–8× digital |
| Detection range | 1,800 m |
| Minimum focus distance | 3 m |
| Colour palettes | 6 (White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia) |
| Day camera (4K) | |
| Resolution | 3,840 × 2,160 (4K UHD) |
| Frame rate | 50 Hz |
| Focal length | 55 mm |
| Aperture | F/2.0 |
| Magnification | 5.5× base, 1×–8× digital |
| Field of view (H × V) | 8.0° × 4.5° (14.0 × 8.8 m @ 100 m) |
| Minimum focus distance | 7 m |
| Image modes | Colour, Black & White, Green, Yellow, Auto |
| IR illuminator | |
| Wavelength | 940 nm (invisible) |
| Range | 350 m |
| Design | Detachable and replaceable |
| Laser rangefinder | |
| Measurement range | up to 1,000 m |
| Accuracy | ±1 m |
| Laser class | Class 1 (eye-safe) |
| Image processing & display | |
| Image processing | PIPS 3.0 with AI calibration, EIS, defog, hotspot tracking |
| Image modes | Thermal / Day camera / Picture-in-picture (PIP) |
| Display | OLED, 1,920 × 1,080, 0.49 inch, curved UI |
| Connectivity & storage | |
| Wi-Fi | Dual-band 2.4 GHz + 5 GHz |
| GPS / Compass | Yes / Yes |
| App | Pixfra Outdoor (iOS / Android) |
| Internal storage | 64 GB |
| Video recording | Yes |
| Battery & charging | |
| Battery | 18650 Li-ion, replaceable, ≥8 h (Wi-Fi off, 25 °C) |
| Charging input | USB-C, 5 V DC |
| Mechanics | |
| Interpupillary distance (IPD) | 60 – 74 mm |
| Protection class | IP67 |
| Operating temperature | −30 °C to +55 °C |

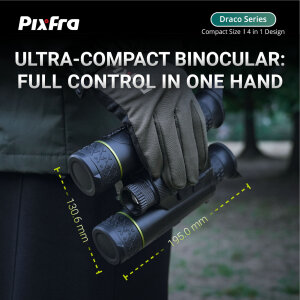

| Dimensions (L × W × H) | 195.0 × 130.6 × 61.7 mm |
| Weight | ≤620 g |
| Manufacturer part number | PFI-D635N-4K |
Box contents – Pixfra Draco D635N-4K
- 🔭 Pixfra Draco D635N-4K multispectral binocular
- 💡 940 nm IR illuminator (attached)
- 🔋 18650 Li-ion battery (installed)
- 🔌 USB-C charging cable
- 🎒 Pixfra chest pack
- 📖 Quick start guide
