Pixfra · Thermal Imaging · Monocular
Pixfra Mile 2 M625 – Thermal Monocular 640×512 | 25 mm
640×512 VOx sensor · 12 μm · 25 mm F1.0 · NETD ≤25 mK · 1,300 m detection · OLED 800×600 · WiFi · IP67 · <320 g.
High-resolution thermal vision in your pocket
The Pixfra Mile 2 M625 is a compact thermal monocular with a 640×512 vanadium oxide (VOx) uncooled focal plane array sensor and 12 μm pixel pitch. The 25 mm F1.0 germanium lens delivers 1.65× optical magnification and detects human-sized targets at up to 1,300 m. A high-resolution 0.32-inch OLED display (800×600) renders crisp imagery through six selectable colour palettes. Built-in WiFi enables real-time streaming to up to four smartphones simultaneously via the Pixfra Outdoor app. PIPS 2.0 image processing, electronic compass, hot-spot tracking and 16 GB internal storage complete the feature set – all in a pocket-sized body weighing less than 320 g.
PIPS 2.0 Image Processing
Superior thermal clarity – beyond conventional image processing
Pixfra’s proprietary PIPS 2.0 (Pixfra Image Processing System) combines advanced algorithms with the cohesive lens-sensor design to deliver thermal images that surpass conventional standards. Fine detail enhancement, adaptive contrast and noise reduction work in real time at 50 Hz, producing a smooth, high-contrast thermal picture even in challenging conditions such as fog, rain or complete darkness.
WiFi streaming & electronic compass
Connect up to four devices simultaneously via built-in WiFi and stream the live thermal image to the Pixfra Outdoor app (iOS & Android). The integrated electronic compass accurately captures orientation information, providing precise navigation and positioning data directly in the viewfinder overlay. Combined with the hot-spot trace function, which automatically highlights the warmest point in the scene, the Mile 2 M625 becomes a powerful tool for search & rescue, wildlife observation and property inspection.
Red-Dot-winning ergonomics & IP67 durability

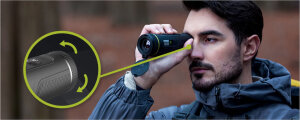

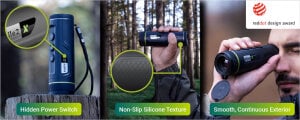

The Mile 2’s Red-Dot-award-winning design features a hidden power switch, non-slip silicone texture and an innovation button layout optimised for flawless blind operation in total darkness. IP67 dust and waterproofing ensures reliable function in rain, snow and dusty environments. The operating temperature range spans −30 °C to +55 °C, covering arctic, alpine and desert conditions. A rechargeable 3,200 mAh lithium battery provides over 6.5 hours of continuous use and charges via USB Type-C.
Key features – Pixfra Mile 2 M625
- 📷 640×512 VOx sensor · 12 μm pixel pitch · NETD ≤25 mK @ F1.0
- 🔍 25 mm germanium lens · F1.0 · 1.65× optical magnification
- 🎯 1,300 m detection range · digital zoom 1×/2×/4×/8×
- 📺 0.32-inch OLED 800×600 · 6 colour palettes · 50 Hz refresh rate
- 📶 WiFi live streaming to up to 4 devices · Pixfra Outdoor app
- 🧭 Electronic compass · hot-spot trace · 16 GB internal storage
- 🔋 3,200 mAh Li-ion · ≥6.5 h operating time · USB-C charging
- 💧 IP67 dust & waterproof · −30 to +55 °C operating temperature
- ⚖️ <320 g · 157.5 × 56.6 × 50.3 mm · pocket-sized
- 🏆 Red Dot Design Award · PIPS 2.0 image processing
Who is the Pixfra Mile 2 M625 for?
The Pixfra Mile 2 M625 is designed for anyone who needs high-resolution handheld thermal imaging in a compact, rugged package: hunters scouting game in darkness, outdoor enthusiasts navigating at night, security professionals performing perimeter surveillance, search & rescue teams locating persons in low visibility, and property inspectors identifying heat anomalies.
Technical Specifications – Pixfra Mile 2 M625
| Model | Pixfra Mile 2 M625 (PFI-M625) |
|---|---|
| Product type | Thermal monocular |
| Infrared Sensor | |
| Detector type | Vanadium oxide (VOx) uncooled focal plane array |
| Resolution | 640 (H) × 512 (V) pixels |
| Pixel pitch | 12 μm |
| Spectral range | 8–14 μm (LWIR) |
| NETD | ≤25 mK @ f/1.0 |
| Frame rate | 50 Hz |
| Optics | |
| Focal length | 25 mm |
| Aperture | F1.0 |
| Field of view @ 100 m | 30.7 m × 24.6 m |
| Optical magnification | 1.65× |
| Digital zoom | 1×, 2×, 4×, 8× |
| Detection range | 1,300 m (4,265 ft) |
| Close focus distance | 2 m (6.56 ft) |
| Display | |
| Screen type | OLED |
| Screen size | 0.32 inch |
| Screen resolution | 800 (H) × 600 (V) |
| Colour palettes | 6 (White Hot, Black Hot, Iron Red, Alarm, Amber, Emerald) |
| Diopter adjustment | −3D to +1D |
| Eye relief | 13 mm |
| Image Processing | |
| Algorithm | PIPS 2.0 (Pixfra Image Processing System) |
| Uniformity correction | Auto / manual |
| Hot-spot trace | Yes |
| Recording & Connectivity | |
| Internal storage | 16 GB EMMC |
| Photo / video | Yes (snapshot & video recording) |
| WiFi | Yes – real-time streaming to up to 4 devices |
| App | Pixfra Outdoor (iOS & Android) |
| Electronic compass | Yes |
| Power | |
| Battery | Rechargeable lithium, 3,200 mAh |
| Operating time | ≥6.5 hours |
| Power supply | 5 VDC / 2 A, USB Type-C |
| Environmental | |
| Ingress protection | IP67 |
| Operating temperature | −30 to +55 °C (−22 to +131 °F) |
| Physical | |
| Dimensions | 157.5 × 56.6 × 50.3 mm (6.20 × 2.23 × 1.98 in) |
| Weight (incl. battery) | <320 g (0.71 lb) |
| Package size | 180 × 123 × 96 mm |
| Awards | |
| Design | Red Dot Design Award |
Box contents – Pixfra Mile 2 M625
- 🔍 Pixfra Mile 2 M625 Thermal monocular (640×512, 25 mm)
- 🔌 USB Type-C cable for charging and data transfer
- 👜 Soft carrying pouch skin-friendly material
- 🏷️ Neck strap centred design to prevent tilting
- ✋ Wrist strap for secure single-hand carry
- 📖 Quick Start Guide
- 🧽 Lens cleaning cloth
Frequently Asked Questions – Pixfra Mile 2 M625
Find answers about the Pixfra Mile 2 M625 thermal monocular – from the 640×512 sensor and PIPS 2.0 to battery care, IP67 protection, warranty and shipping.
